Switch-N-Go® Hoist System

The Switch-N-Go® hoist system is designed for class 4-7 chassis cab vehicles with a GVW of 13,500-33,000 lbs and a cab-to-axle of 60-138″. Available in electric-over-hydraulic (E-Series) or full hydraulic (H-Series), there’s a Switch-N-Go® for every business.

KEY FEATURES

BOLT-ON DESIGN

SINGLE HANDED CONTROLS (wired or wireless)

UNIVERSAL BODY LOCKS

SWIVEL HOOK with STOW POINT

For over two decades, Switch-N-Go® has been providing solutions to businesses that want a work truck that can do more. Our interchangeable truck body solution has advantages over both traditional permanent mount and hooklift units. The versatility allows owners to build their ideal work truck by matching the system they need with the chassis they want. With the Switch-N-Go® hoist system and simple operation, a crew can work safely with ground level loading and unloading. In 2022, Switch-N-Go was awarded a patent (PATENT: US 11,214,186 B2) for the hoist system design.

Additional Details

Bolt-on design for quick installation that also allows for transferability between chassis

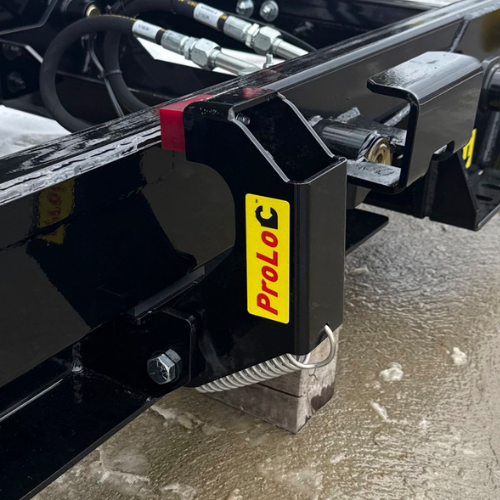

Universal body hold down design secures multiple body lengths with one system with greaseless poly slides for smooth operation
Integrated cable hook stowing on both sides of the system

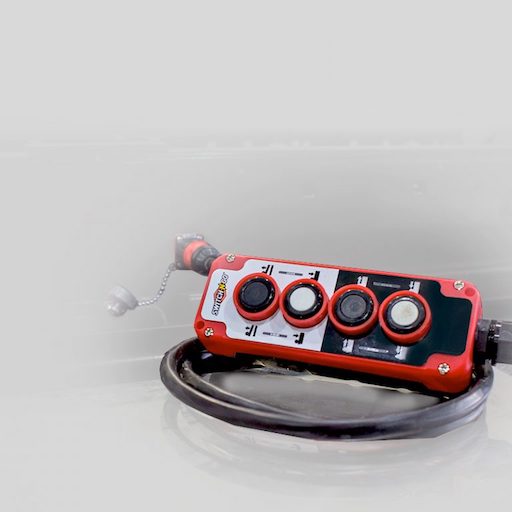

Easy single handed operator controls with in-cab and on-hoist connection points

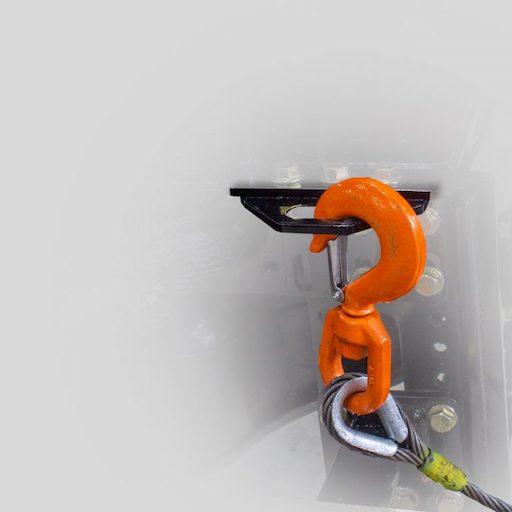

Swivel hook that reduces cable stiffness for improved cable spooling and body attachment

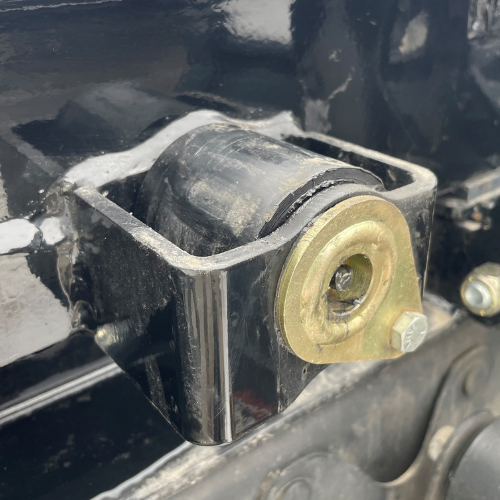

Slide pads providing low friction body support and reduced wear on the system/body rails
Fully enclosed and waterproof junction box with an IP 66 rating

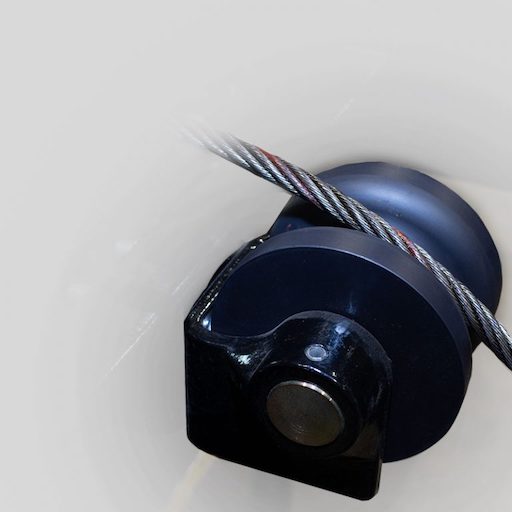

Poly material V-Roller to reduce excessive wear and extend the life of the cable

SPECIFICATION

The H-Series hoist system is a full hydraulic hoist system built for heavy duty workloads is ideal for class 5-7 chassis cab vehicles with a GVWR of 16,001-33,000 lbs. The system is designed to handle unlimited fully loaded (18,000 lbs of body and payload) winch draws per day.

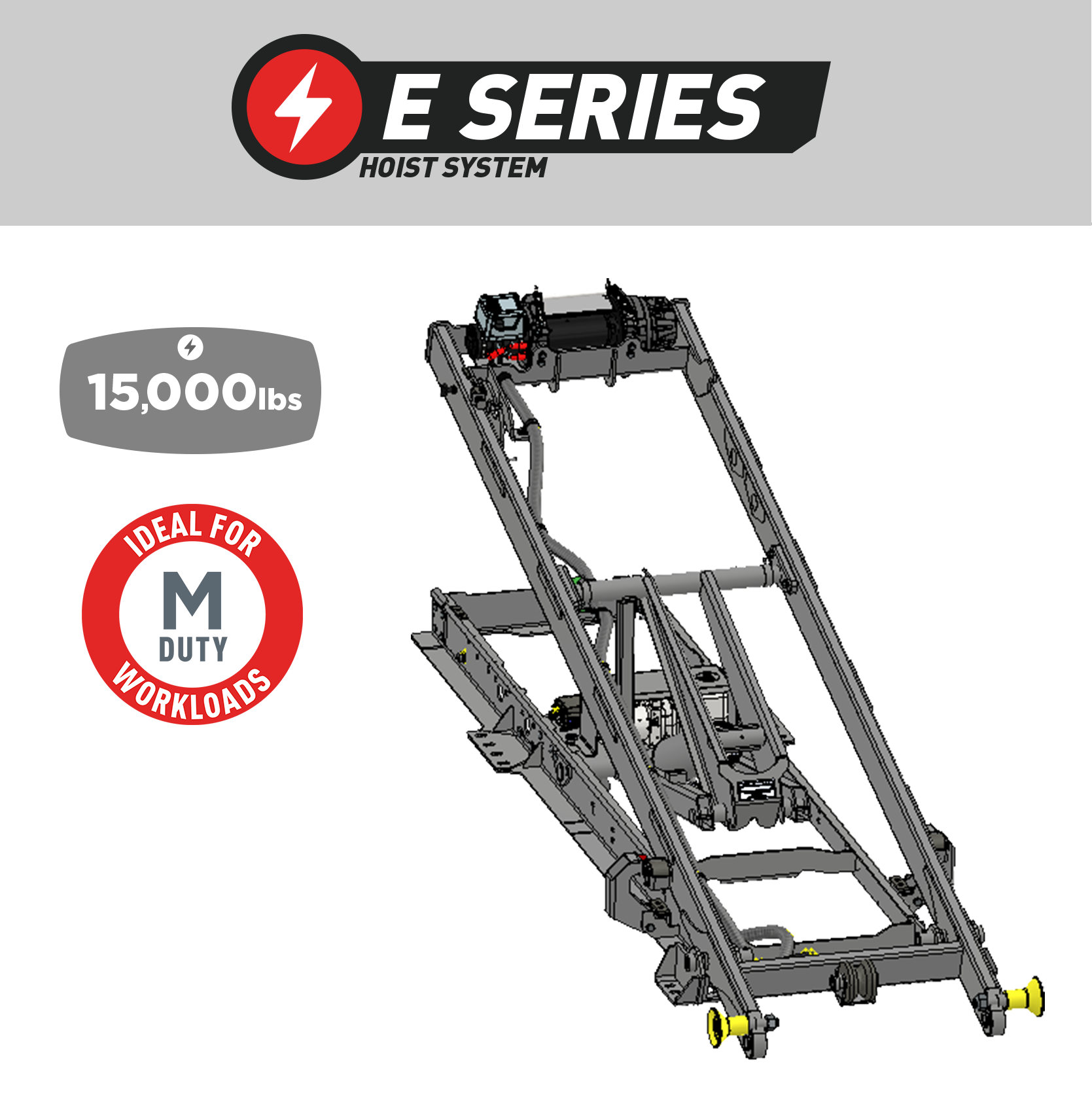

The E-Series hoist system is an electric powered hydraulic hoist system built for medium duty workloads and is ideal for class 4-7 chassis cab vehicles with a GVWR of 13,500-26,000 lbs. The system is designed to handle six fully loaded (15,000 lbs of body and payload) winch draws per day.

HOIST SYSTEM DOWNLOADS

Want to learn more about the hoist system?

FIND YOUR LOCAL DEALER

With over 100 Authorized Dealers available nationwide to help with pricing, parts, and more, look for one in your area and transform your business.
